Product Description
Wingman USB is a highly customizable USB3.2 Gen 2 (up to 10Gbps) shielded USBC cable, in an ultra-compact and flexible format.
High Speed Interface
Microcoaxial USB3.2 (Gen 2) Cable
A production-focused PCB design from Volteon SG, engineered for reliable performance and manufacturing readiness in Singapore.
- Material
- FR4 TG155
- Thickness
- 0.8 mm
- Lead time
- 12 days
- Layers
- 4 layer
- Min via size
- 0.2/0.3 mm
Board documentation
Technical overview
Technical specifications
•USB 3.2 (Gen 2) super speed
•Up to 10Gbp/s data speed
•Available in USBA/USBC format
•100/200/300mm cable length
•0.8mm board thickness is used for smaller size to optimise for weight and allow implementation of straddle-mount USBC instead of bigger through hole USBC.
Mechanical Specifications
| Length | Weight |
|---|---|
| USBC-to-C 100mm | 1.74g |
| USBC-to-C 200mm | 2.04g |
| USBC-to-C 300mm | 2.33g |
Note: +-0.5g for manufacturing tolerances

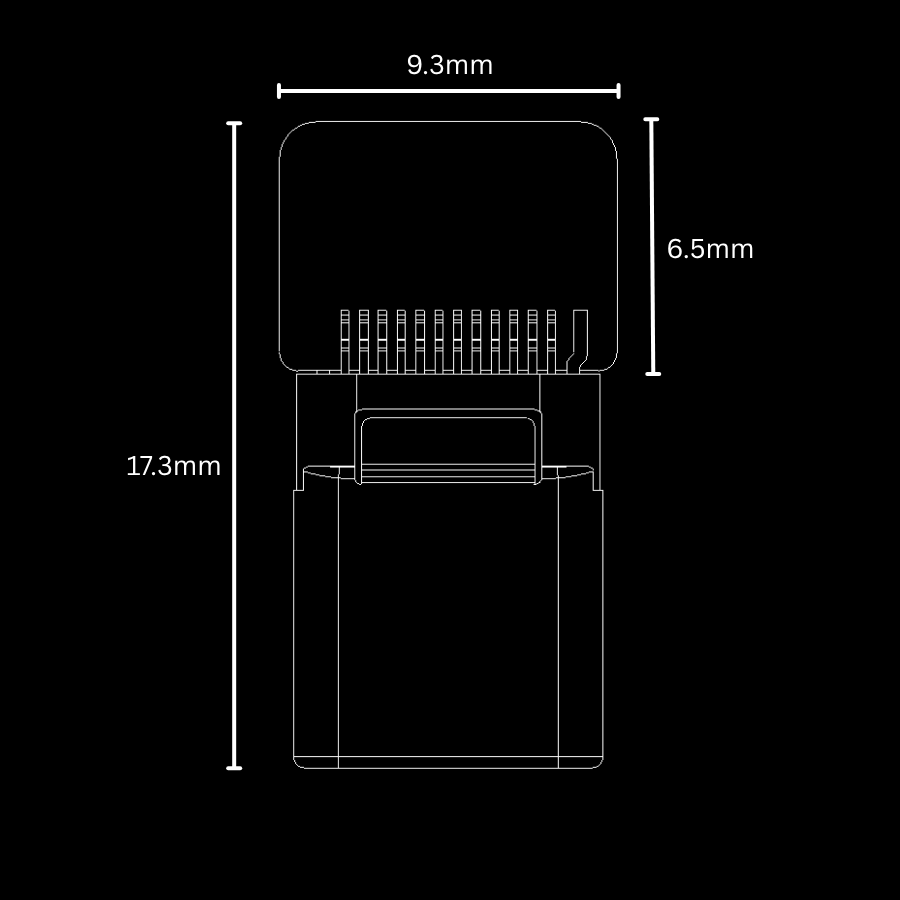

17.3mm x 9.3mm, 3.35mm height (+-1mm for manufacturing tolerances)
Electrical Specifications
Data Transfer Rate: 10Gbps (USB 3.2 Gen 2)
Current Rating: 0.7A (0.35A per VBUS lane, 2 VBUS used)
Base Material: FR4 TG155
Surface finish: LeadFree HASL for PCB
Cable type: IPEX Cabline UY
Storage Conditions
Storage temperature: 248k to 333k (25°C-60°C)
Storage humidity: 85% max (Non-condensing)
